RS-INTB1 integrated navigation base station

Supports full-system, full-frequency spot on-chip RTK positioning, only used as a base station

product description

RS-INTB1 internally integrates high-precision and high-performance GNSS modules and 4G network communication modules. It is mainly targeted at fields such as drones, lawn mowers, precision agriculture, and smart driving tests. It supports full-system, full-frequency point-on-chip RTK positioning, and is only used as a base station. . The external configuration serial port can be used to configure the GNSS receiver module parameters. Paired with the integrated navigation and external synchronization module, 4G communication can automatically connect the integrated navigation and external synchronization module, send RTK data, and achieve high-precision RTK positioning connected to the integrated navigation and external synchronization module.

typical application

• Drones

• Intelligent driving

• Lawn mower

• Precision agriculture

Consult now

Download

You can also call the consultation hotline400-800-5512

Features Performance parameters Mechanical Dimensions

Features

Internally integrated GNSS module provides RTK positioning base station data

The base station and the mobile station remotely exchange RTK data without being limited by distance.

Support BDS B1I/B2I/B3I + GPS L1/L2/L5 + GLONASS L1/L2 + Galileo E1/E5a/E5b + QZSS L1/L2/L5 + SBAS

Performance parameters

Classification	parameter	value
GNSS	Signal support	BD / GPS / GLONASS / GALILEO / QZSS
	RTK (RMS)	Plane: 0.8cm+1ppm, elevation: 1.5cm+1ppm
	DGPS (RMS)	Plane: 0.4m, elevation: 0.8m
	Single point positioning (RMS)	Plane: 1.5m, elevation: 2.5m
	Orientation accuracy (RMS)	0.1°/1m baseline
	Time accuracy (RMS)	20ns
	Speed Accuracy(RMS)	0.03m/s
Environmental characteristics	range of working temperature	-40℃ ~+85℃
	Storage temperature range	-55℃ ~+95℃
	Humidity range	95% non-condensing
	Anti-vibration, anti-shock	GJB150.16A-2009,MIL-STD-810F GJB150.18A-2009,MIL-STD-810F
Power supply characteristics	Supply voltage	DC12V±5%
	Power consumption	<2W
	Measured state average current	<200mA (12V power supply)

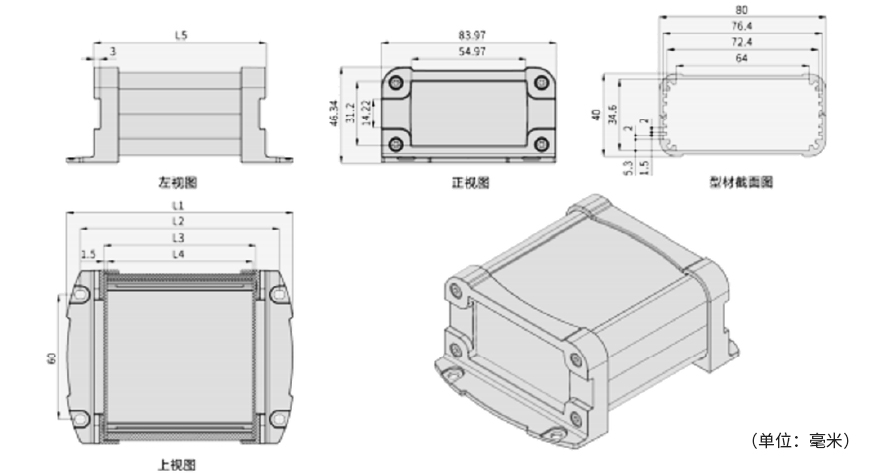

Mechanical Dimensions
